What is the Vertical X 2.0 lifeline and what is it used for.
Vertical X 2.0 is a guided type vertical fall arrest device, designed to protect operators exposed to the risk of falling from a height during access and work at height on fixed ladders or vertical structures.
The system consists of a vertical rigid anchorage line and the GTFA guided fall arrest device with an integrated energy absorber, which helps reduce the forces transmitted to the user and the structure in the event of a fall.
Each operator uses their own GTFA device, which can be inserted at any point on the line and is equipped with an automatic locking system in case of a fall. Vertical X 2.0 allows for simultaneous use by up to 3 operators, maintaining a minimum distance of 3 meters between each user.
To complete the system at the bottom of the rigid anchorage line, Vertical X 2.0 can be configured with two different tensioners:
- The PRO VEX325 tensioner integrates a tension indicator, allowing for an immediate check of the correct cable tensioning both during installation and during periodic inspections.
- The LIGHT VEX336 tensioner ensures the correct tensioning of the rigid line with a more essential solution, without a visual tension indicator.

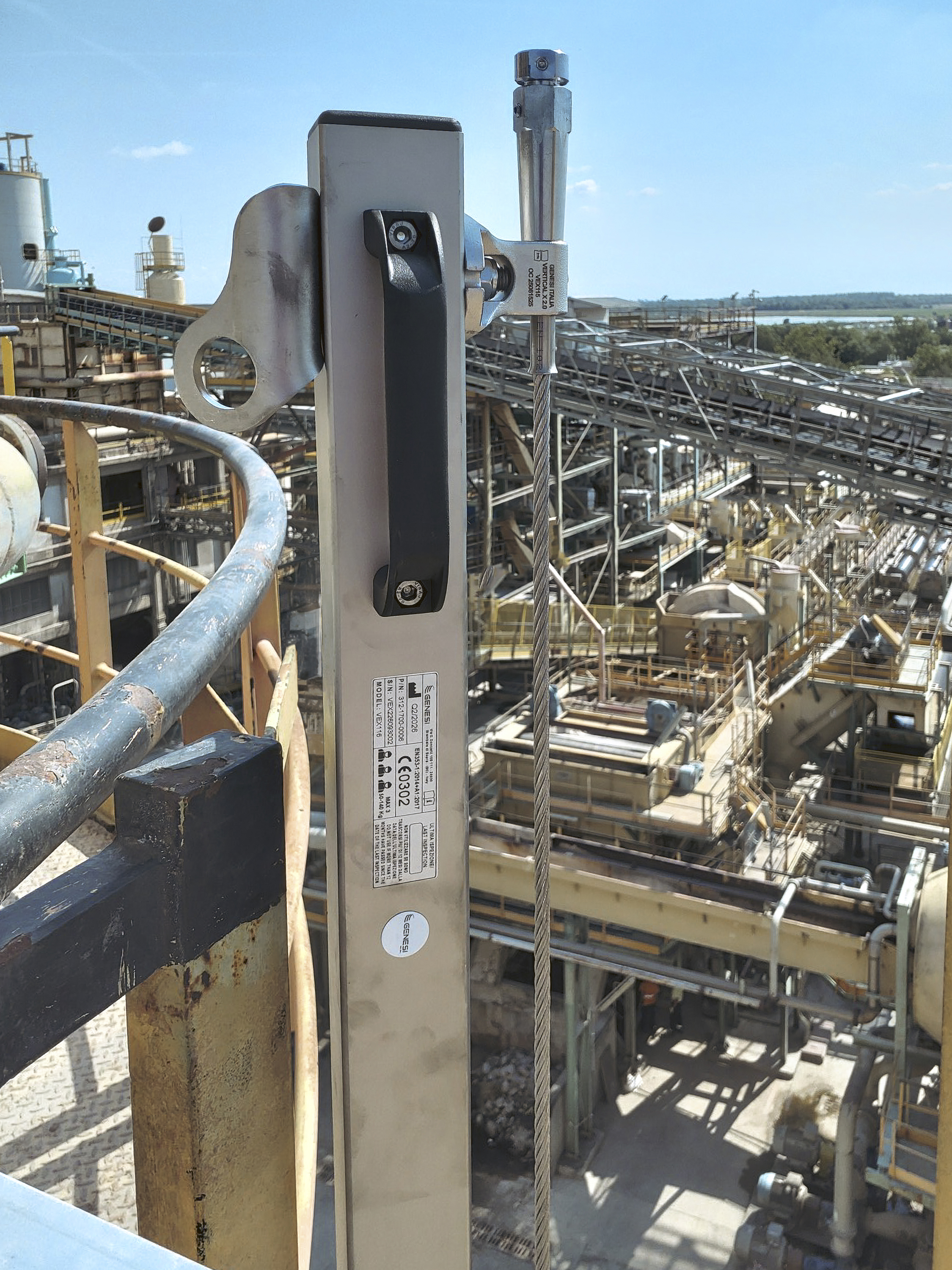

If the work requires access at height, the VEX116 landing gate can be added as an accessory. It can be installed on the ladder stile using dedicated brackets and consists of two upper handles, which facilitate the operator’s passage, and a certified anchorage point, which makes the connection and disconnection operations of the GTFA device safer.
Main technical features.
Use by up to 3 operators simultaneously (each with their own GTFA).
GTFA fall arrest device with integrated energy absorber.
Installable directly on a structure or on a ladder stile thanks to the dedicated brackets.
Maximum system length: 100m.
The tension indicator (optional) allows checking the cable tension before using the system.
Landing gate accessory installable on a stile with ergonomic handles and an anchorage point.
Mechanical cable connection without crimping.
Compliance
EN 353-1:2014+A1:2017
RFU PPE-R/11.119 Version 1
PPE Regulation 2016/425
Vertical X 2.0 is used in all contexts where it is necessary to protect operators during work at height with vertical access, such as fixed ladders, silos, roofs, and infrastructures. Thanks to its versatility, the system can be installed both on the stile of existing ladders and directly to the structure.

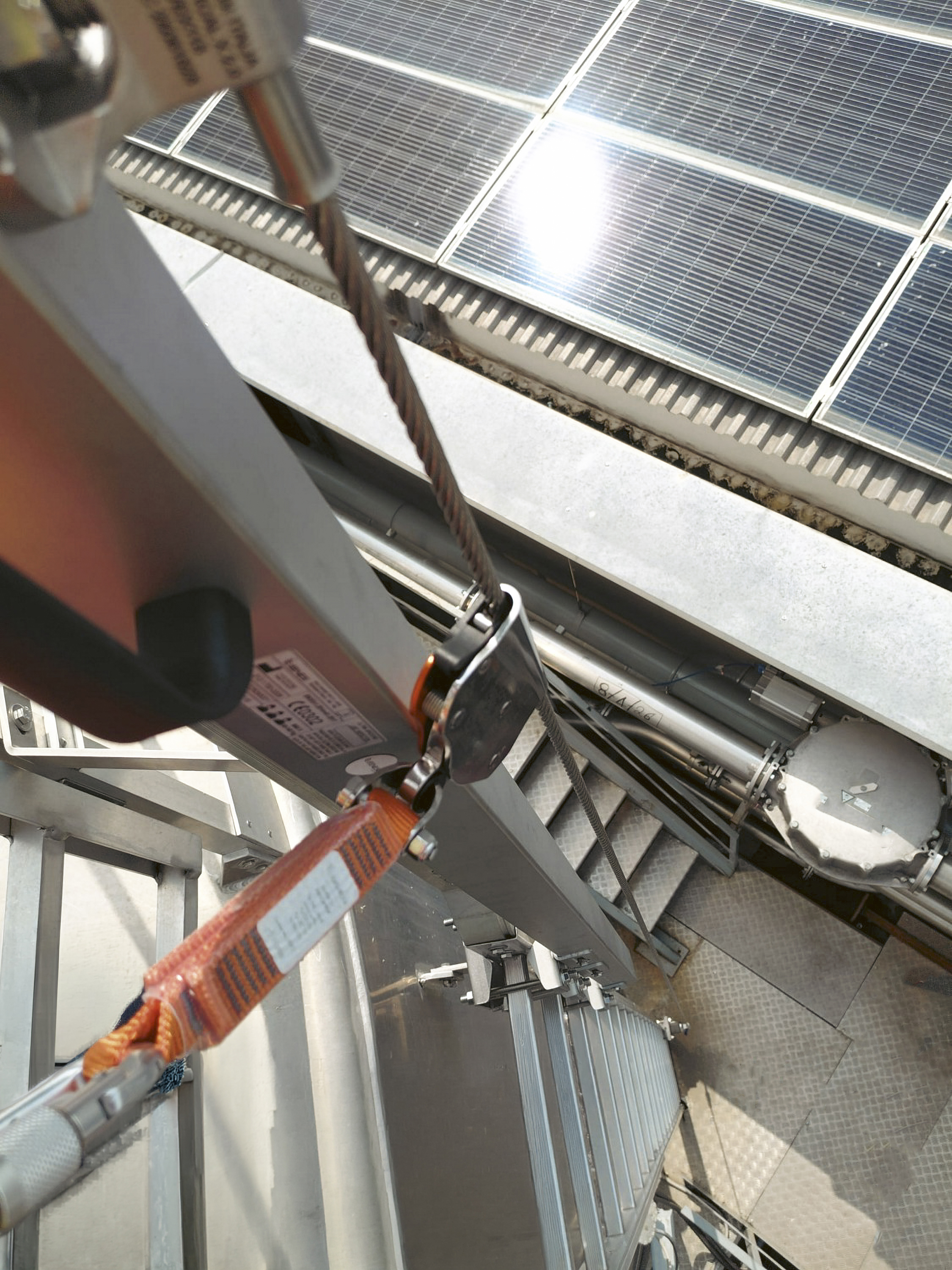

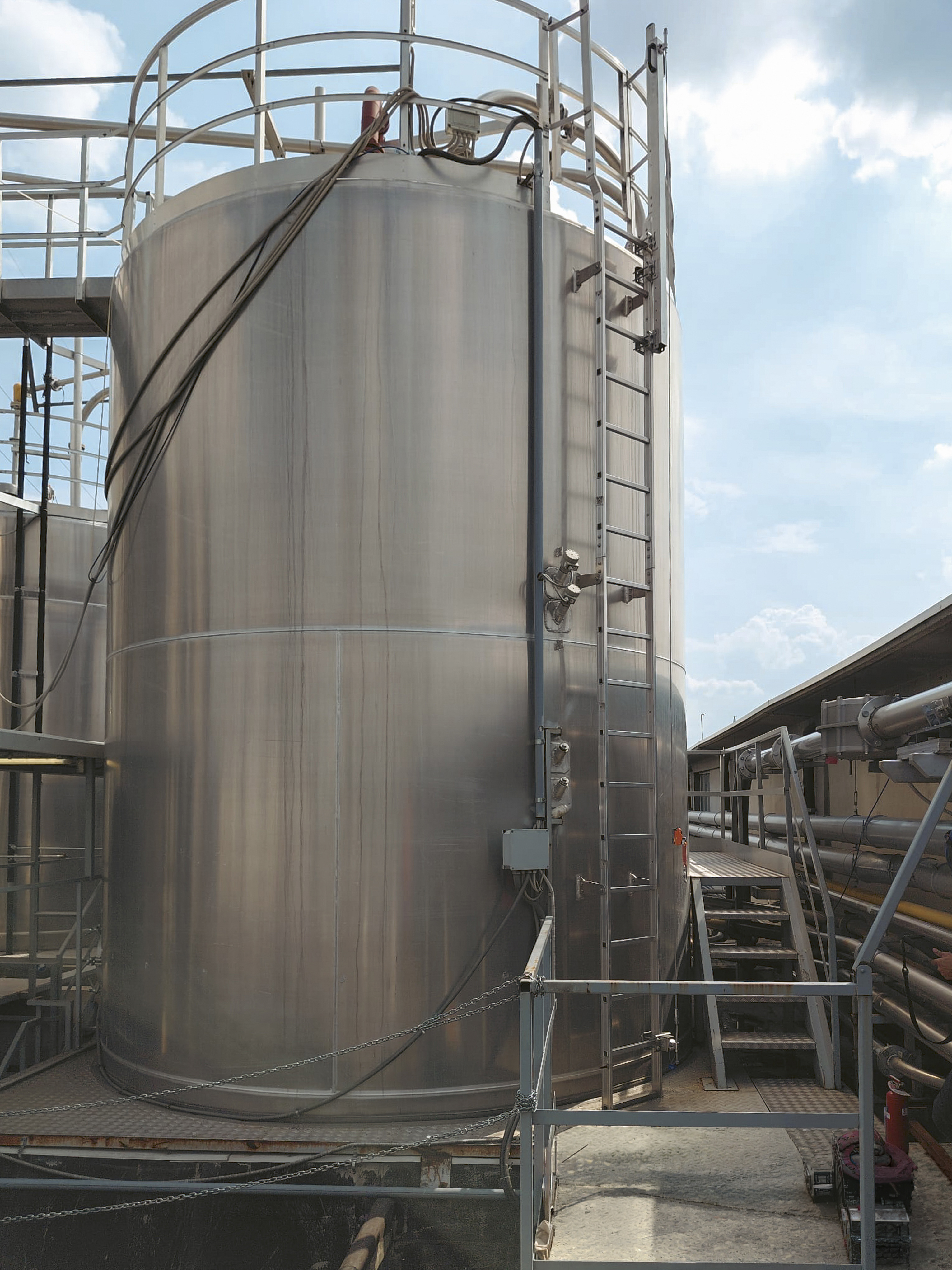

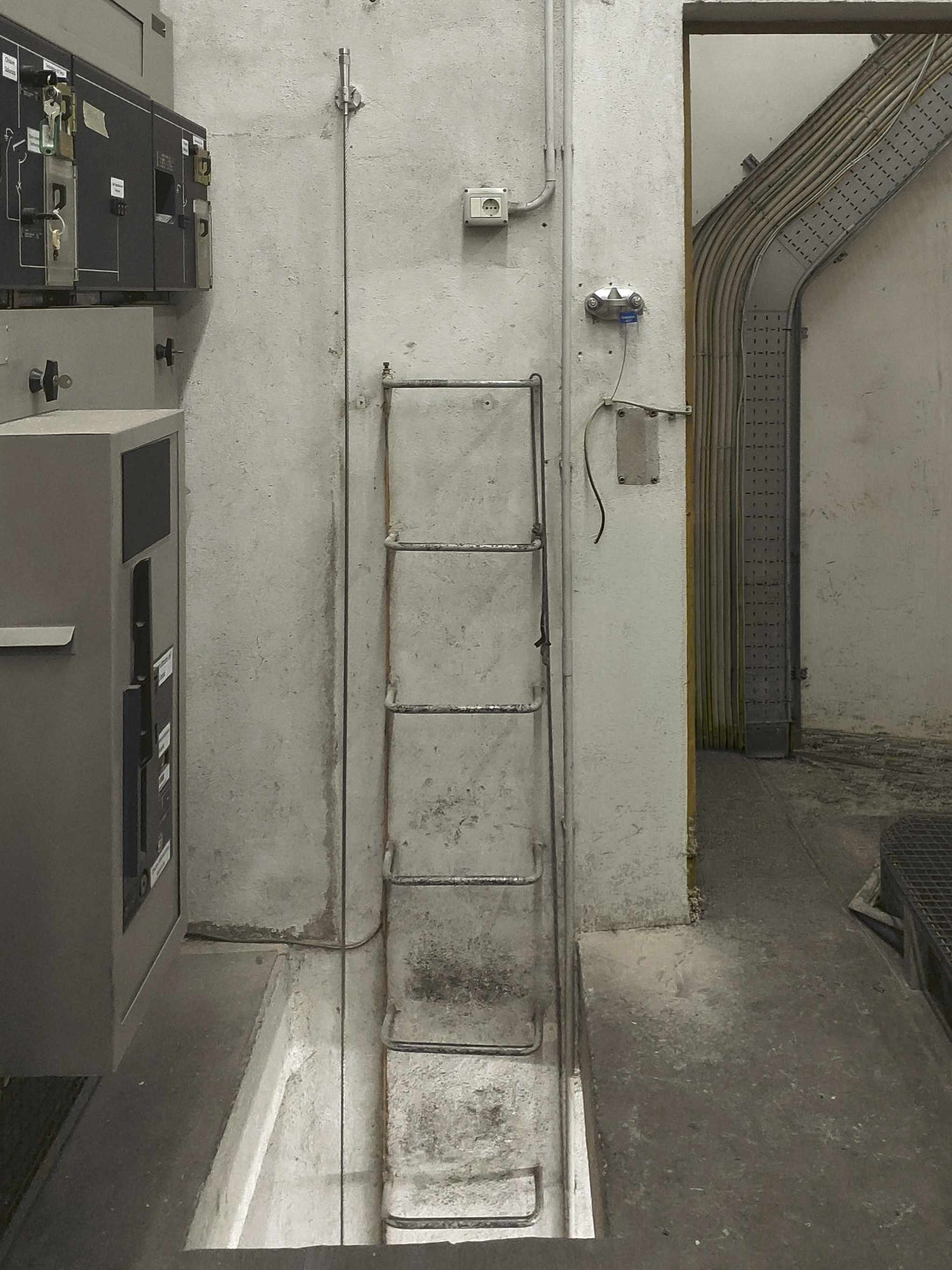

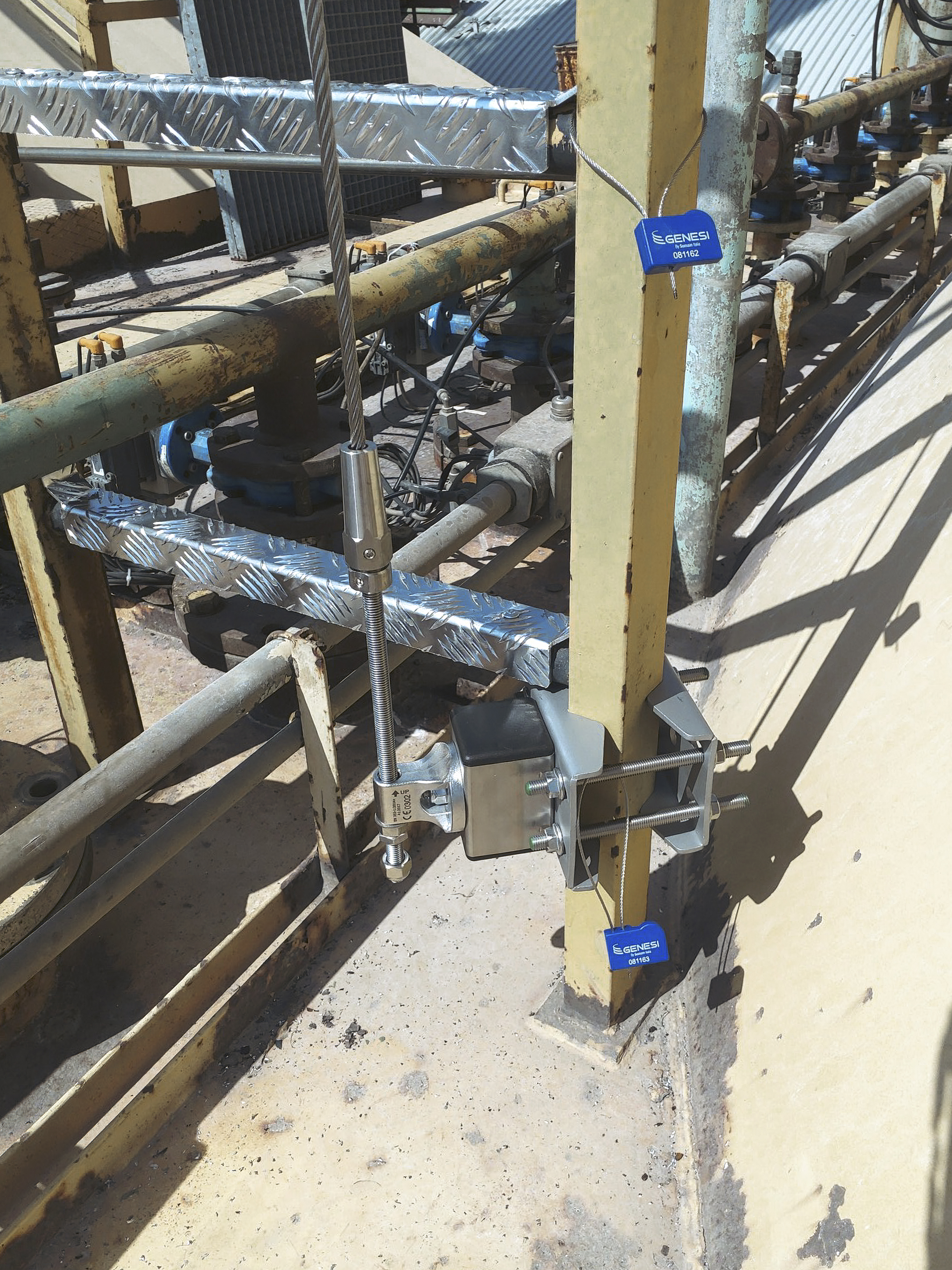

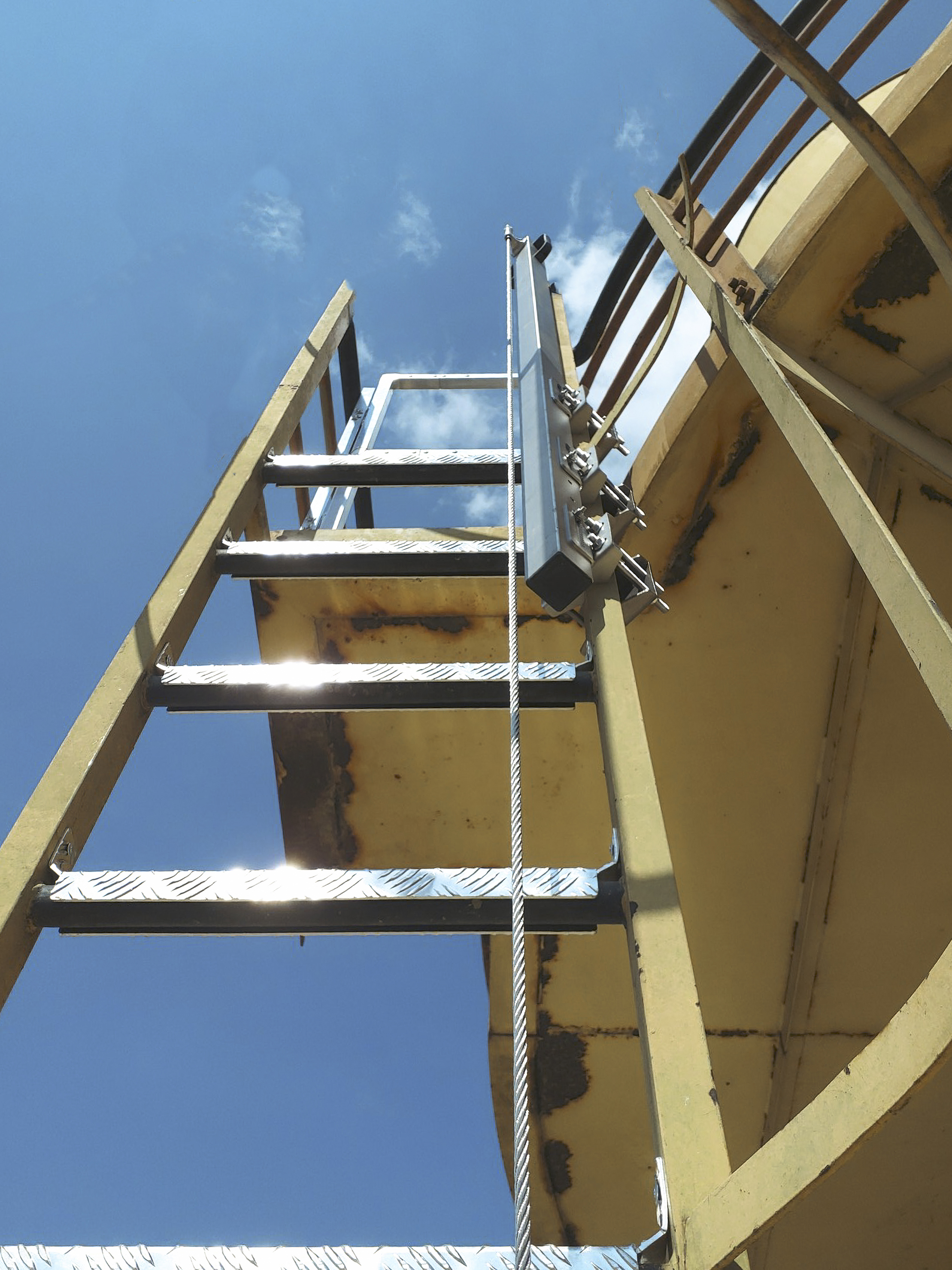

Scroll through the gallery or click the icon to watch installation videos and case histories featuring the Vertical X 2.0 lifeline.
Certified safety for up to 3 operators.
Flexible installation options.
Ease of use.
Monitoring of proper cable tensioning (VEX325).
Reduction of loads transmitted to the structure.
Installation of the GTFA device at any point along the line.

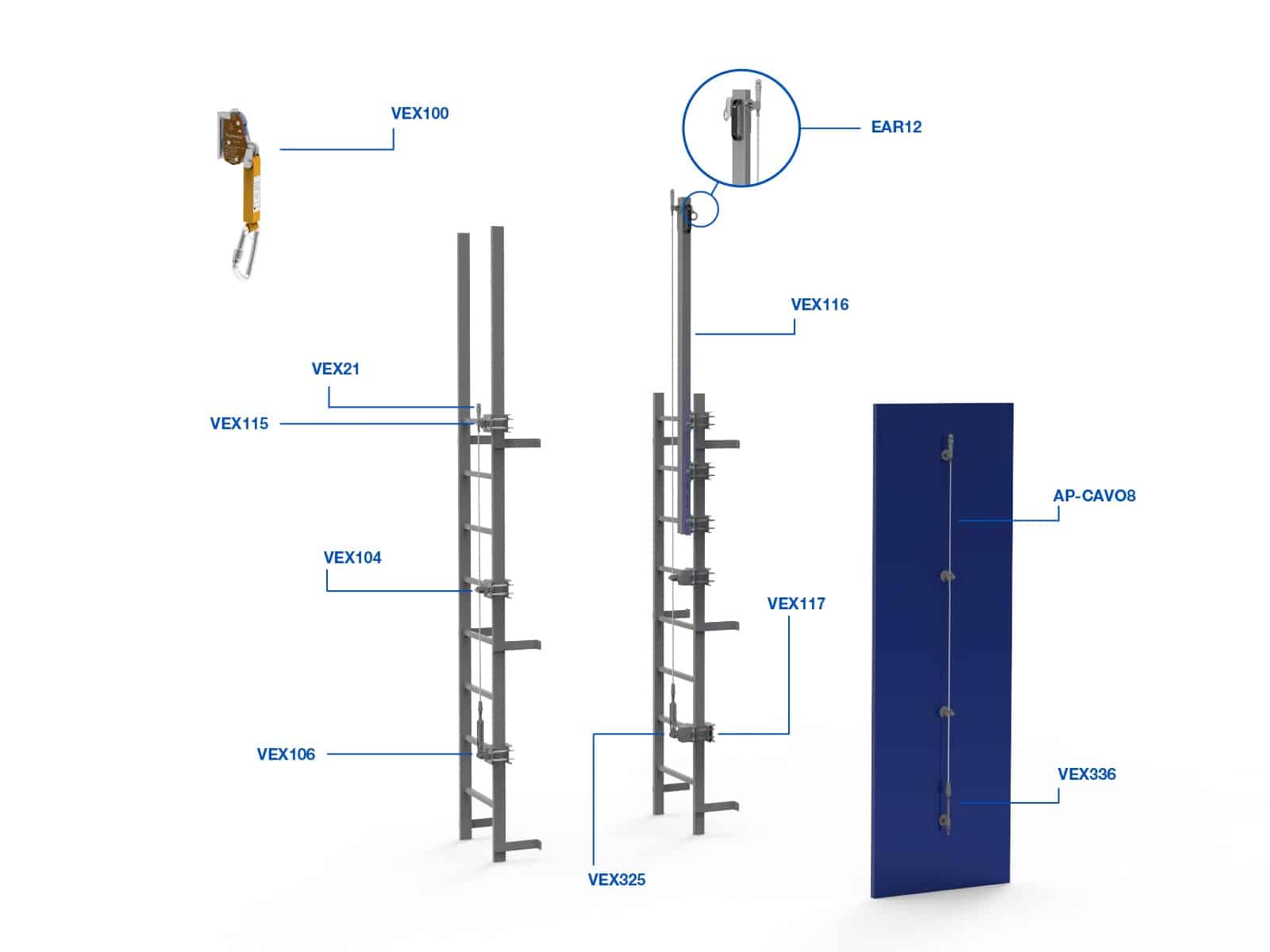

VEX100
Guided type fall arrester.
VEX104
Intermediate cable guide element.
VEX21
Swageless cable connection.
VEX115
High extremity element.
VEX336
Lower extremity element with cable tensioner.
VEX325
Lower extremity element with cable tensioner and tension indicator.
VEX116
Landing.
