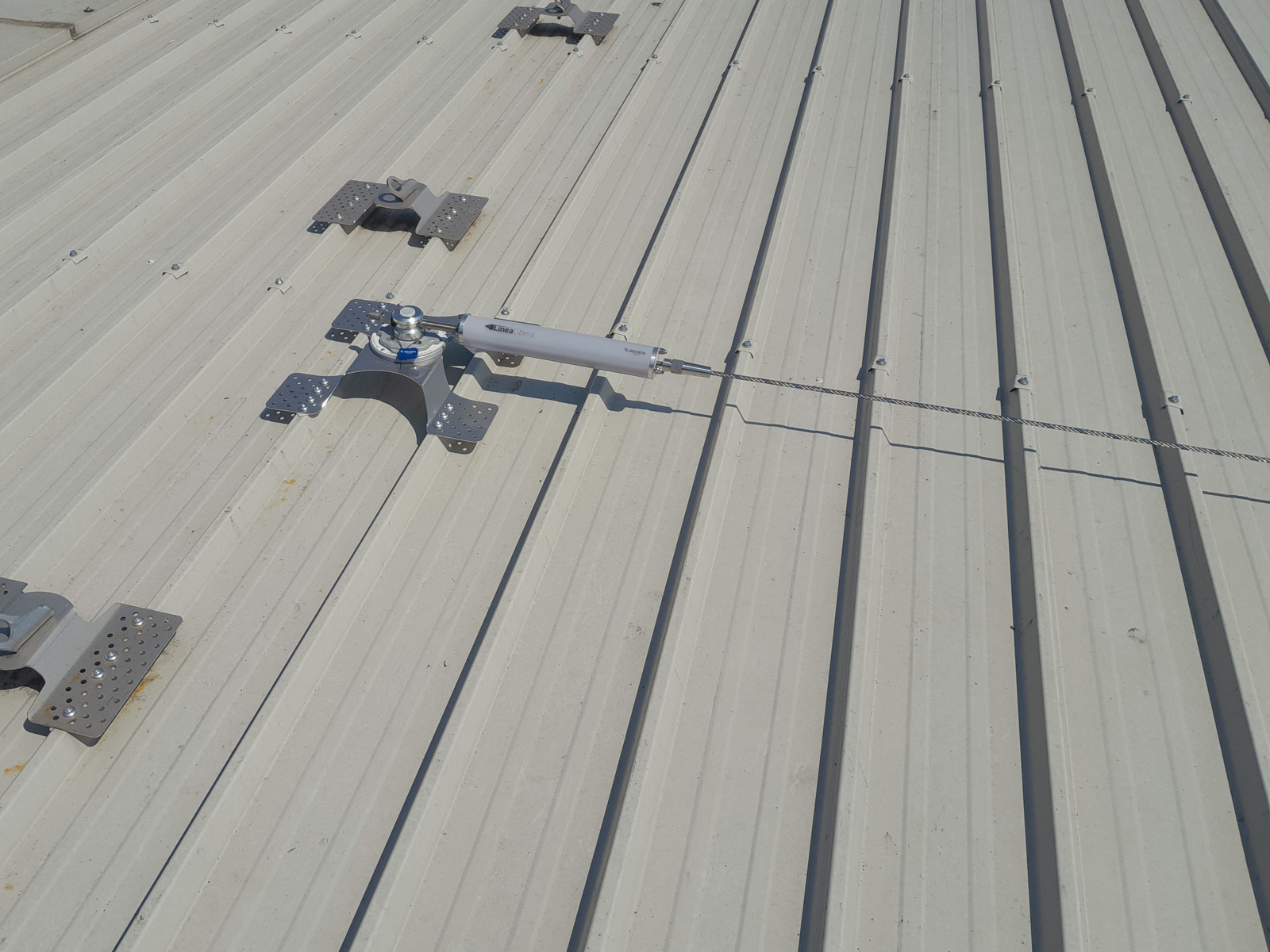

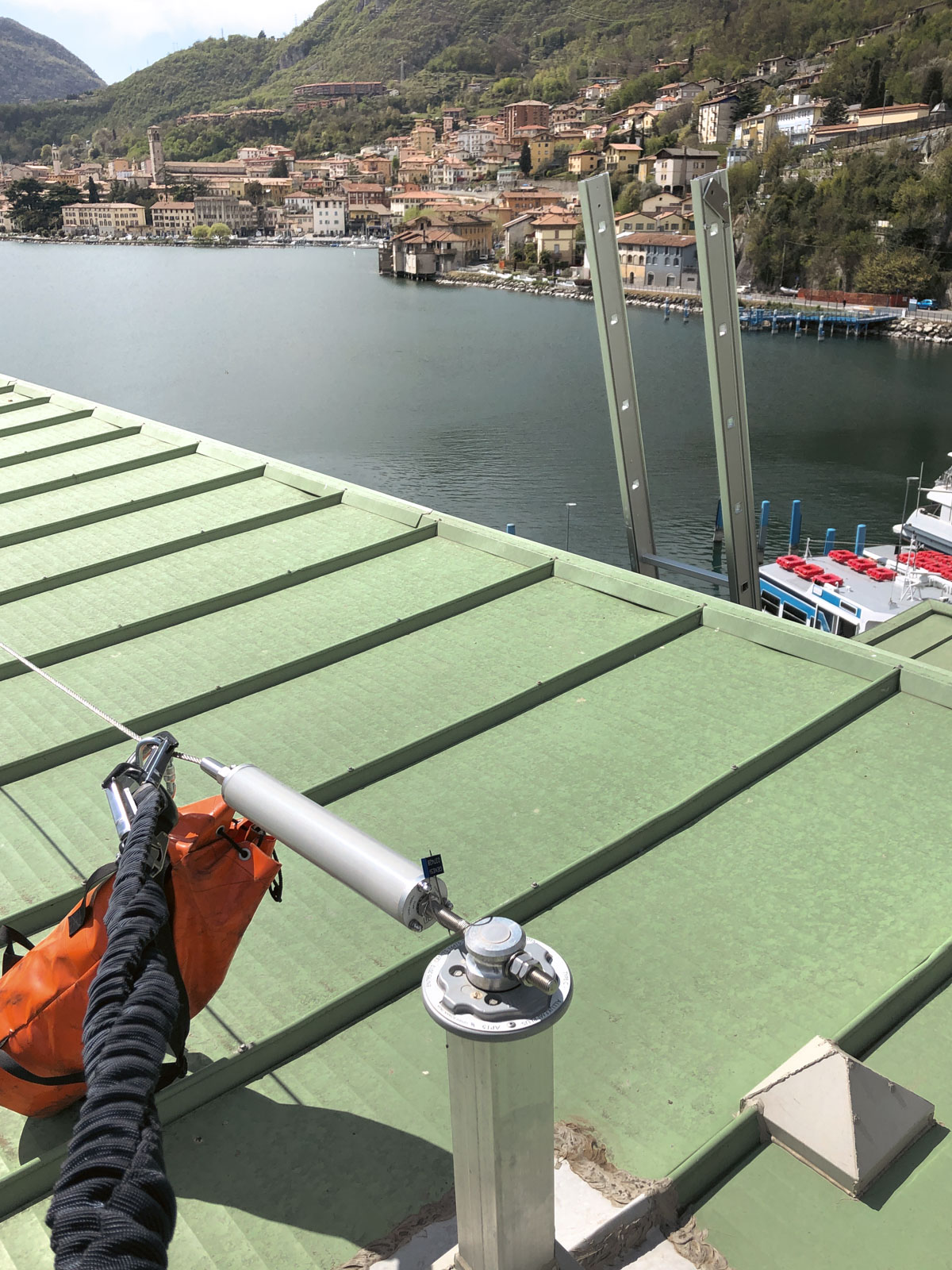

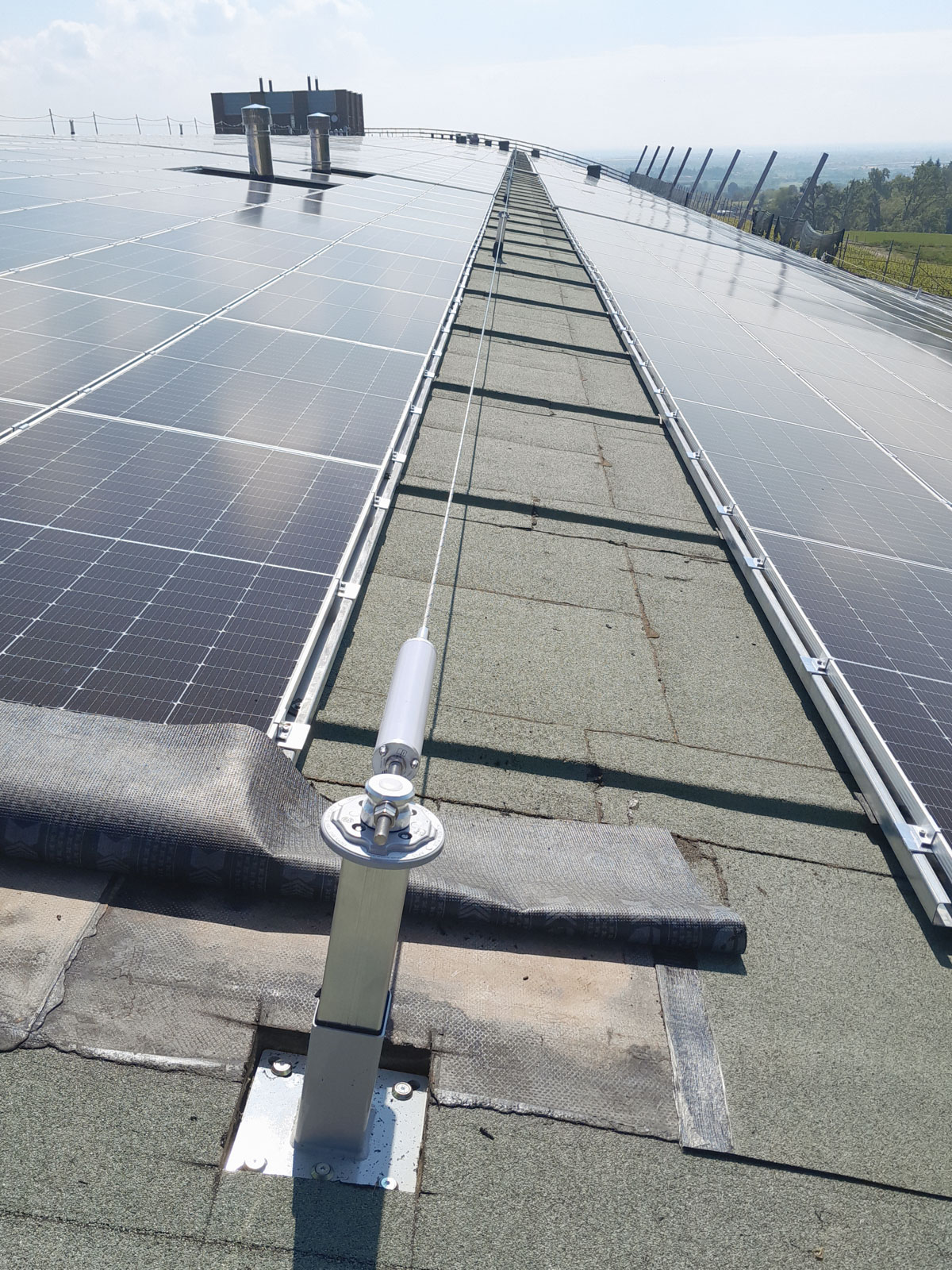

Libera LifelineAnchor device with flexible anchor line.
The LIBERA lifeline is an anchor device that uses a flexible anchor line conforming to the technical standard EN 795:2012 Type C and can be used by 2 operators at the same time, in accordance with technical specification CEN/TS 16415:2013 and by 3 operators in accordance with UNI 11578:2015 (on a rigid structure).
The elements that make up the line are manufactured using a special die-cast aluminium alloy that combines lightness, mechanical and corrosion resistance, and are fixed to the supports using stainless steel hardware.

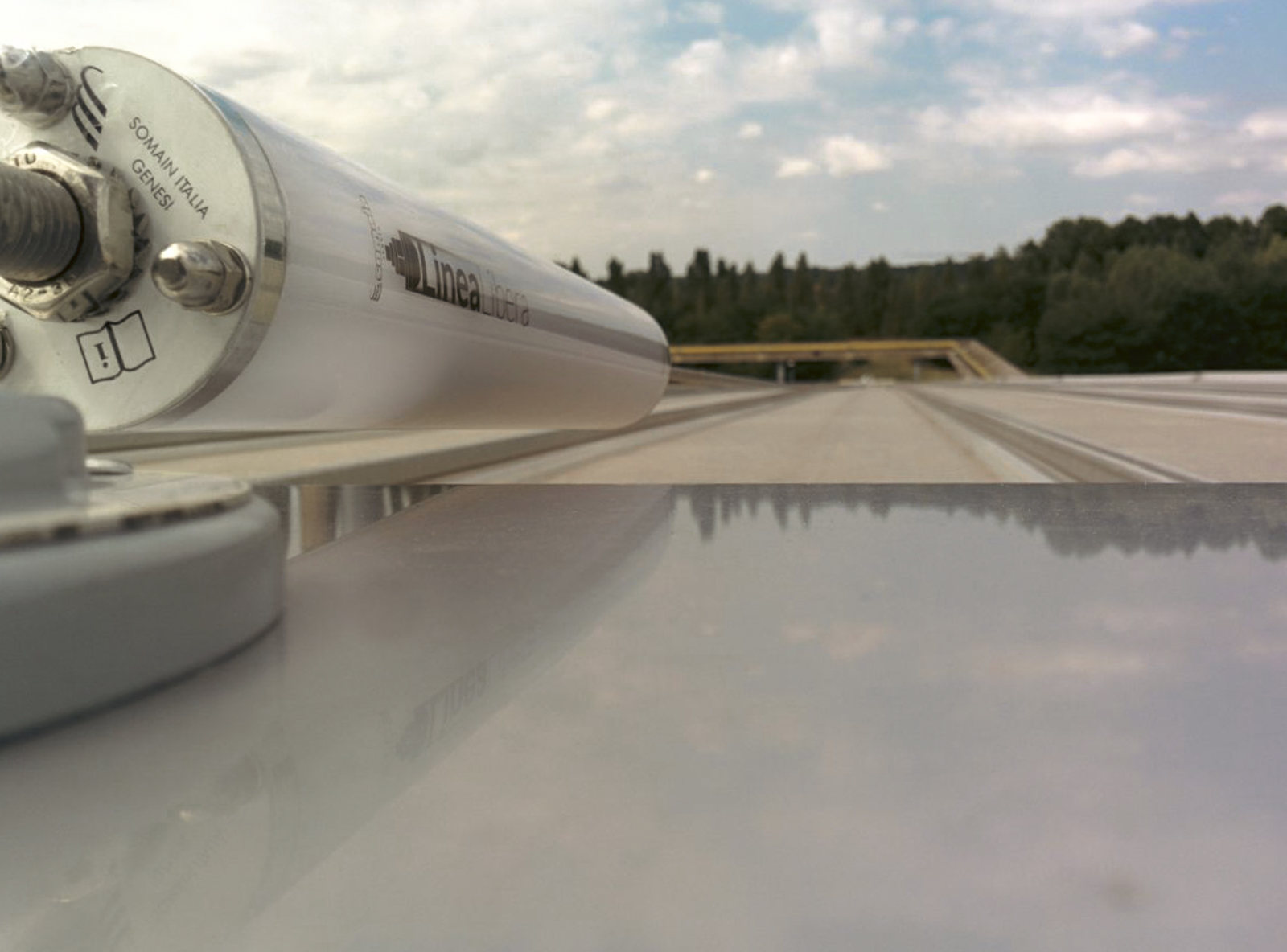

The absorber assists the tensioner during assembly to allow for proper cable tensioning.
The line is designed for mounting on special aluminium and cataphoretically painted steel supports.
No shuttles are required to use this anchor device: the operator simply hooks the lanyard connector or retractable device onto the line cable: thanks to its shape, the intermediate element can be passed over without the worker having to disengage from the line.
Advantages
High product performance
Reduced aesthetic impact
Adaptable to any type of roof, even low load-bearing capacity
Custom support design
Ergonomy
Lightness
Modularity
Simplicity and easy to use
Ten years warranty
Certifications according to the strictest industry standards
Verification test of proper installation
Components
AP10
Absorber/Turnbuckle
AP-CAVØ8
Cable
AP4
Intermediate element
AP15
End element
AP6
Small arch for corner transmission
Discover the applications of the Libera lifeline
